[boyesreef]

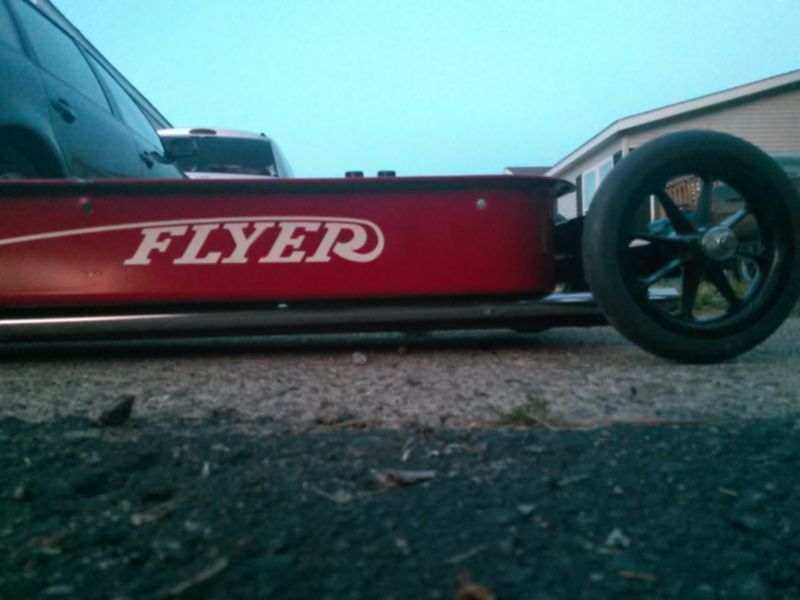

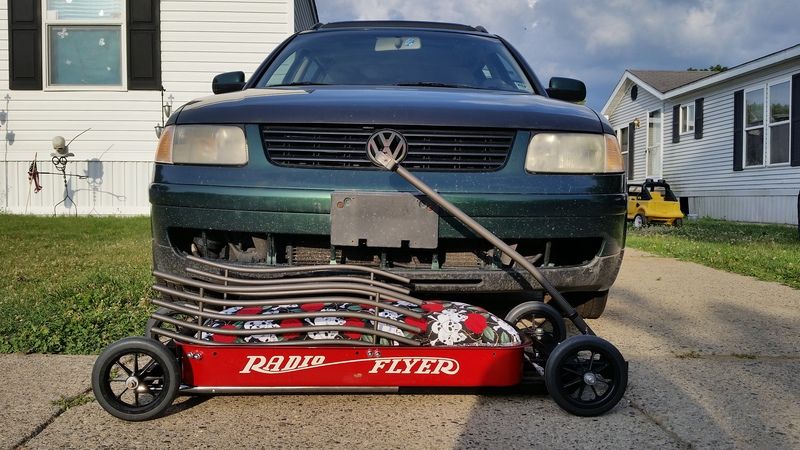

anything your building to go along with your passat. mine is for my daughters birthday, but it will go to the car shows the passat is in.

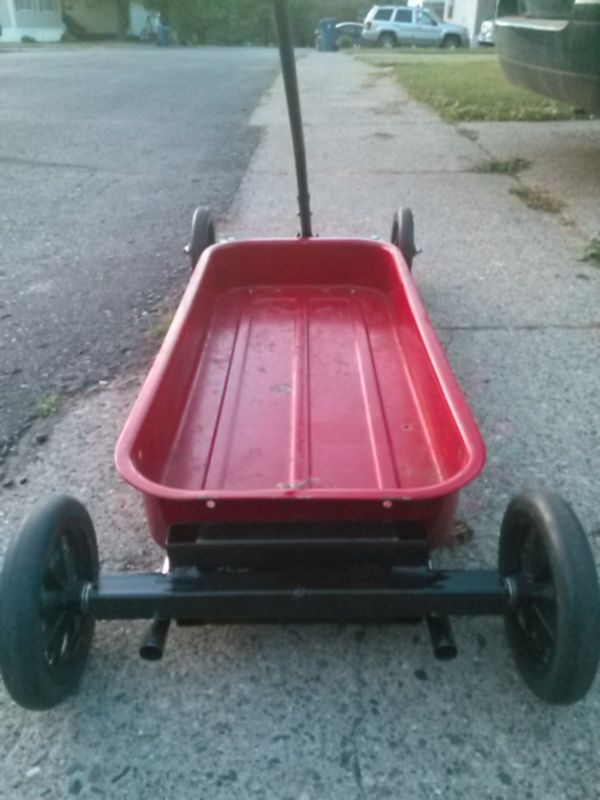

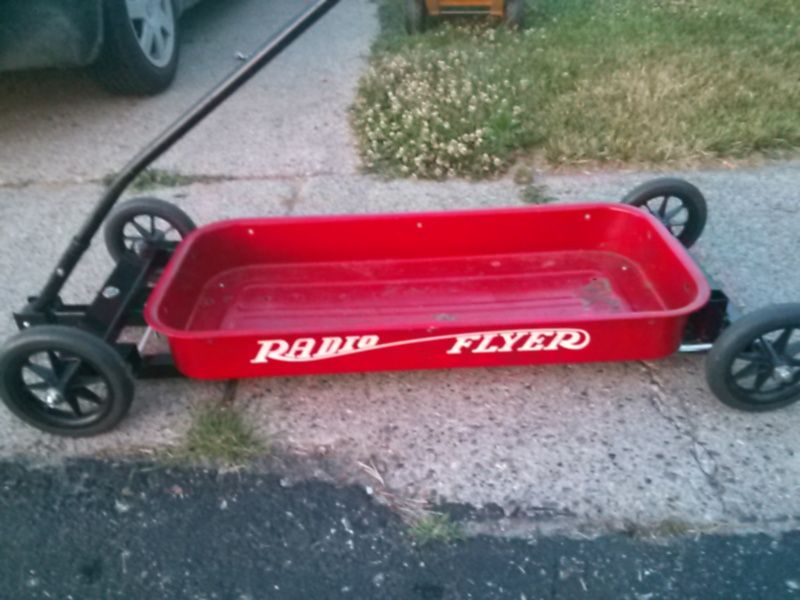

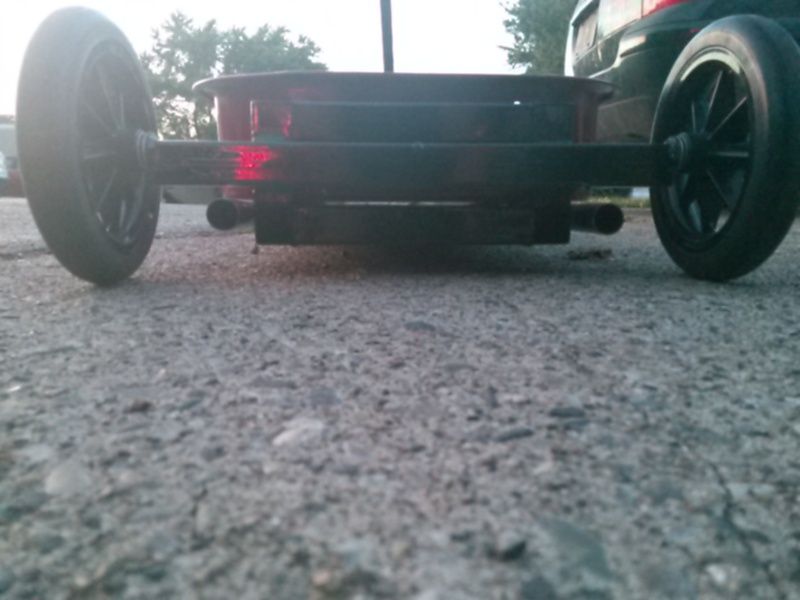

its got a full frame, tail pipes, and wheelchair wheels. it supports (tested) 300 pounds and rolls with one finger.



what do you all got going on?



[Hirnbeiss]

Nice job, but I think it could do with more bolts - you have enough in those cans in the background



[Kulprit88]

VWVortex.com - Roadmaster Red Wagon Build

I made this a few years ago.



[boyesreef]

Nice job, but I think it could do with more bolts - you have enough in those cans in the background

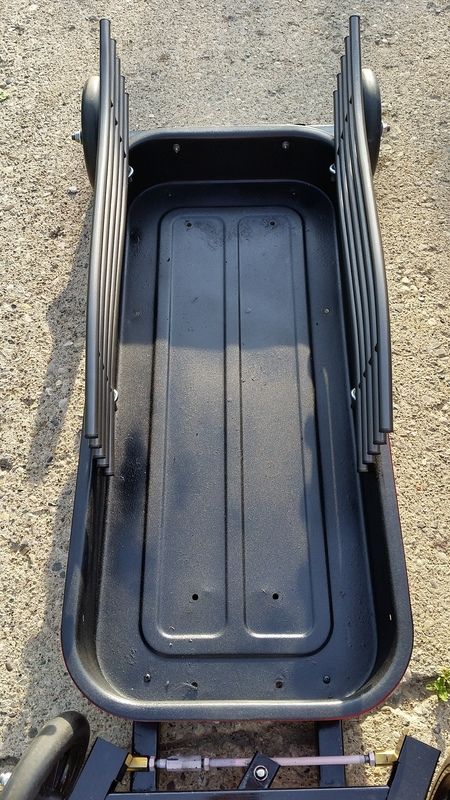

im a big fan of not going to the hardware store. ill tear something apart and keep the good bolts. the only thing i bought for this project was the cold rolled steel for the rear axle. all tubing is 4 side welded. i think it should do 400 pounds with little issue. it is now rhino lined inside the tub, and has a nice hand built pillow inside, ill update pictures when i can. hard to do while hiding it from the kids for my oldest s birthday. im going to add a faux shifter knob off the right side and some custom side rails.



[boyesreef]

VWVortex.com - Roadmaster Red Wagon Build

I made this a few years ago.

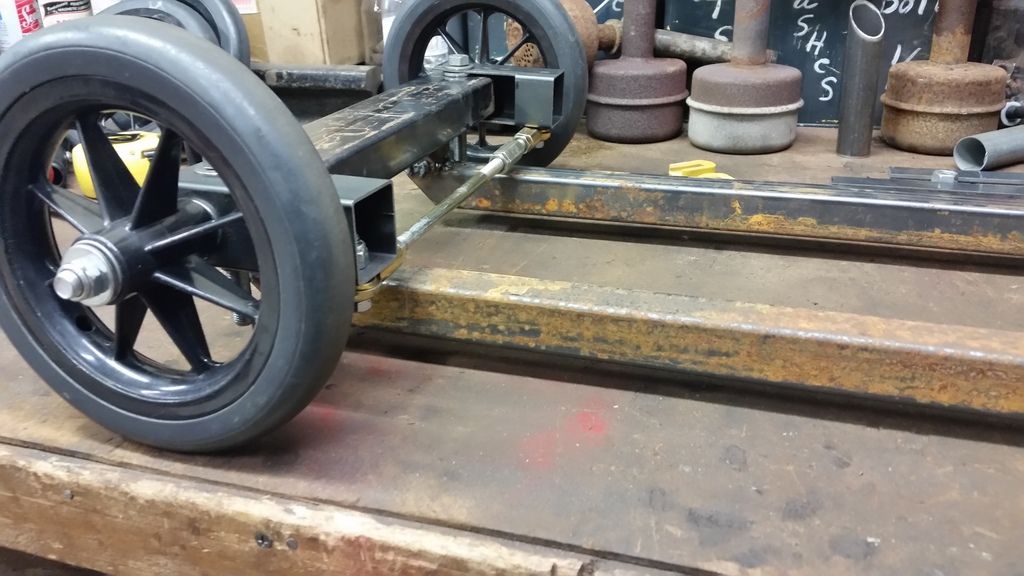

that things cool man, love the quadrasteer! i tell you, the worst part of the front end i built is trying to figure out the damn tie rods so it tracks straight and dosnt wear out tires.



[Kulprit88]

lol turnbuckles. once I had it dialed in I welded it solid. It looks slightly different now, I made a quick release handle for it. just a simple knurled pin with a cotter pin. that way it can lay in the trunk and barely take up space. the bottom got reinforced.
thanks though. they are a ton of fun to pull the kids in. people love seeing them.



[Kulprit88]

just looked again, those heim joints should do the trick?



[boyesreef]

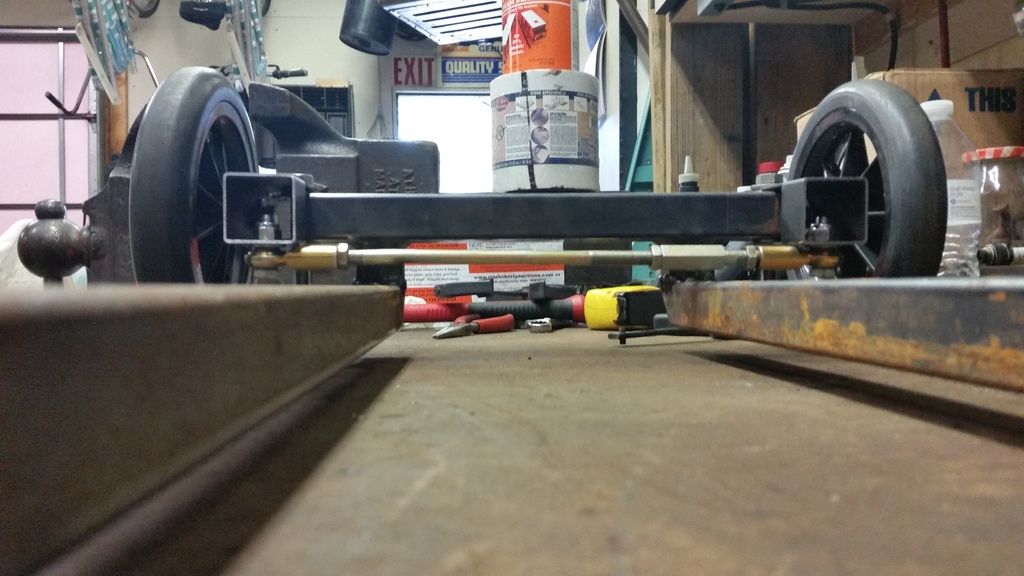

if you look at the second picture from the bottom, you will see that it adjusts in the middle for length, but you could also adjust the ends independently. if i build another it WONT be that complicated.



[Kulprit88]

complication is what makes projects like this cool.



[boyesreef]

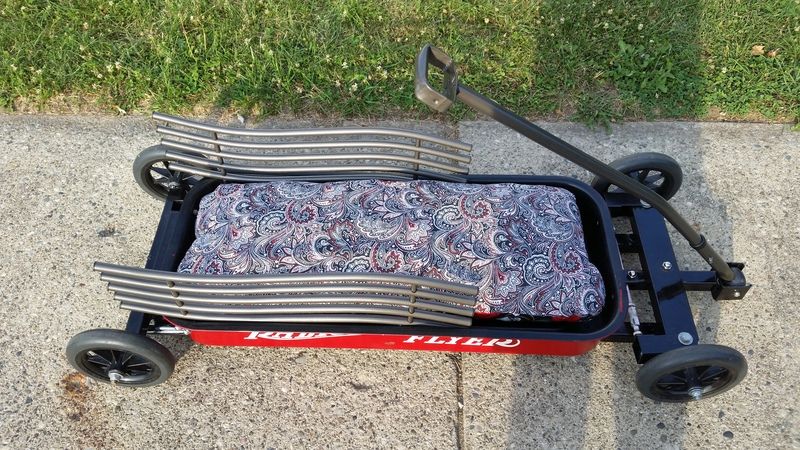

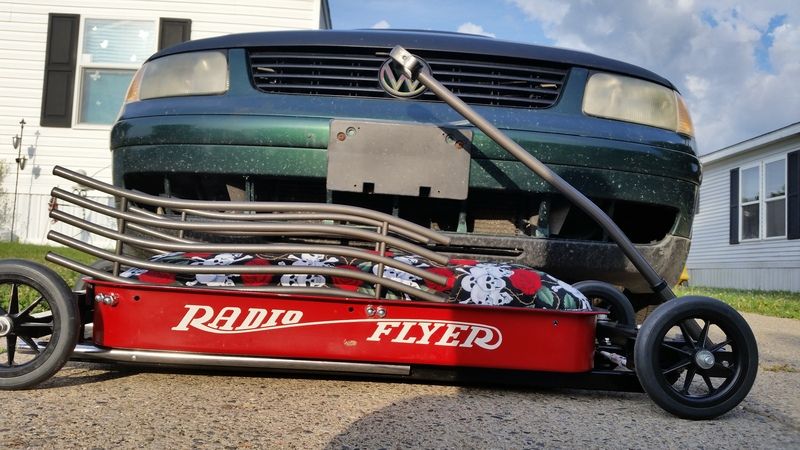

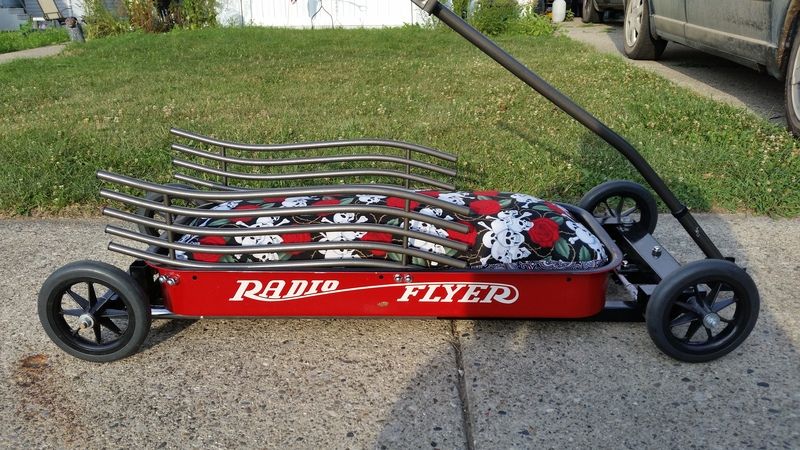

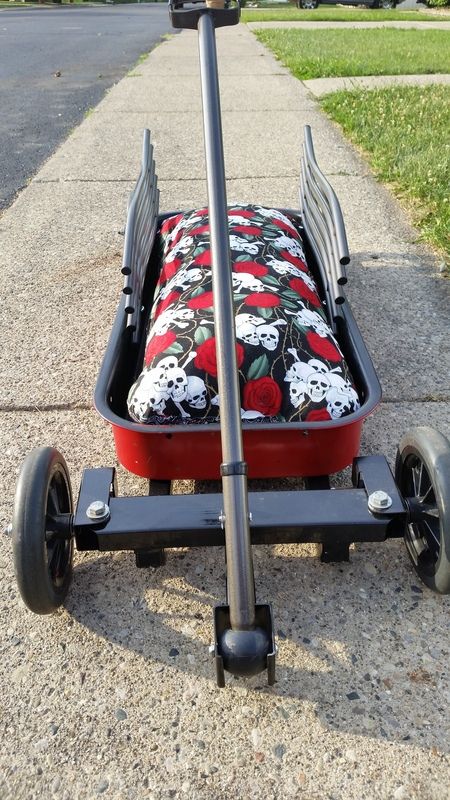

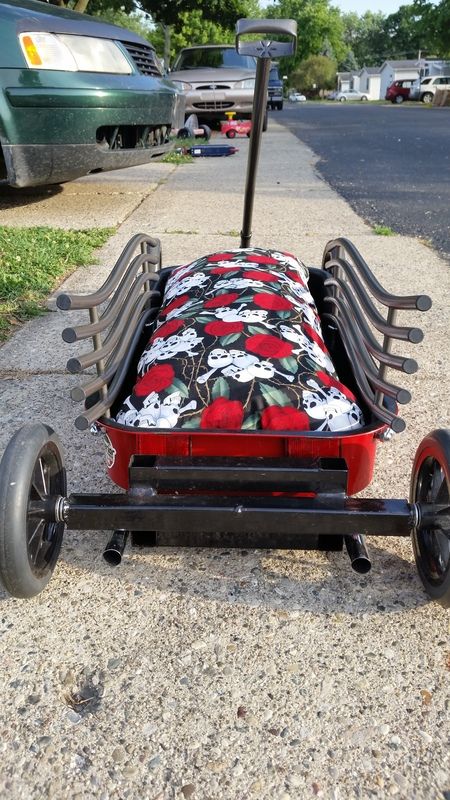

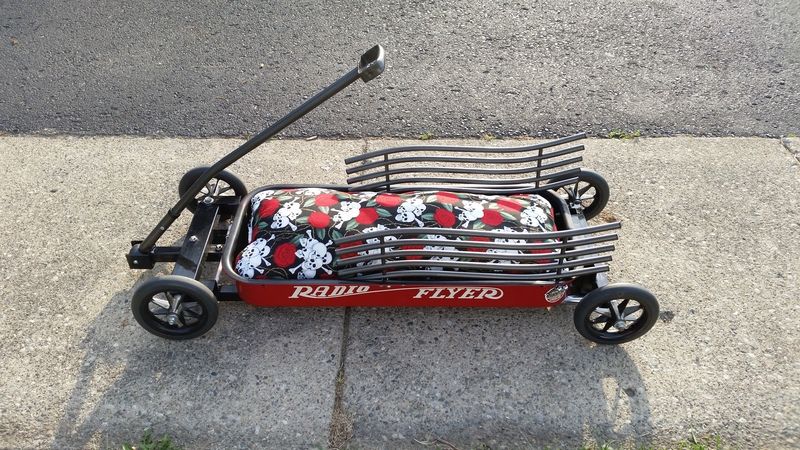

Massive update boys and girls. I think I may be done.



[John_E]

Yours is way cooler because you built it yourself, but I never can resist a chance to show off my grandson.

You have given me a great idea for when Henry is a bit older.



[boyesreef]

Yours is way cooler because you built it yourself, but I never can resist a chance to show off my grandson.

View attachment 70417

You have given me a great idea for when Henry is a bit older.

cute kid! i over engineered everything, it can be made MUCH simpler. google is a good starting point!
