Vacuum line left out in every thread.

2409 Views 7 Replies 3 Participants Last post by  evilpulse8
Hey guys, I was driving around today enjoying my exhaust drone and my thoughts began to ponder about my emissions when suddenly I realized that after like a year when I had changed my vacuum lines to silicone ones. I remembered that one line that runs behind the intake manifold which was torn but I didn't replace because it was bigger than 3mm(or was it 3.5). Any who, that hose as far as I've always seen in threads, has always been left out. Some have asked but never got a response as to what size it was. And now, I'm asking for the bump on this, anyone know the size?? It has clamps of doom and connects to the T fitting. It is about 2.5 inches long.
It is under here:

and this is the hose:

Also as I unplugged a vacuum line from that little zinc plated block(vacuum check valve?), I'm not sure as if air sucked in or blew out. Could it be a sign that it is clogged somewhere?? If one line is torn, it obviously should have no vacuum anywhere what so ever, no???
1 - 2 of 8 Posts
It is a 6mm line although I used a 5mm line because I did not have any of the proper size. Be careful when removing the 3mm lines off the T portion of that. It is just a poly fitting and the lines will be stuck to it. Just pulling on the lines with stretch the leg of the T fitting, rendering it useless. The local VW dealership will not carry that part and it is so odd that no FLAPS or hardware store had something the exact same size. Carefully score the tube with a utility knife.

The sound probably came from the vacuum reservoir refilling with air as said above. It is a good sound to have heard, meaning no vacuum leaks in that circuit at least.

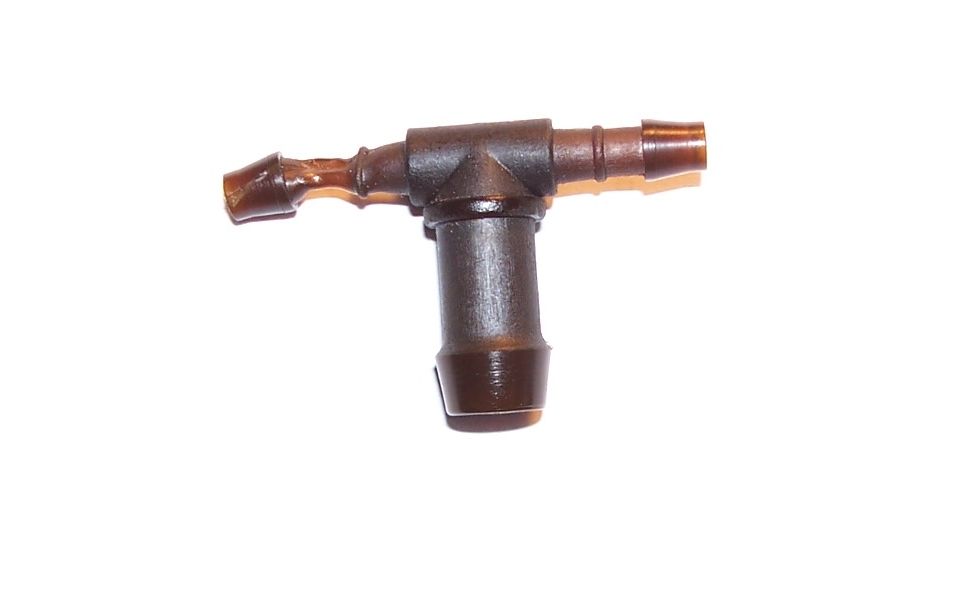

This is how the T appears if care is not used when removing the tubing

The T is VW part number 078129737A
The hose is 7mm ID by 2.5mm wall and requires 50mm (2 inches) of VW PN 443121107A Vacuum hose, but it is sold in 5M lengths.
