[tecra]

From what I heard, there should be 4 braided vacuum hoses on ATW/AWM.

I've managed to find #1,2,4 on that ATW picture above on my AWM engine, but I can't find #3.

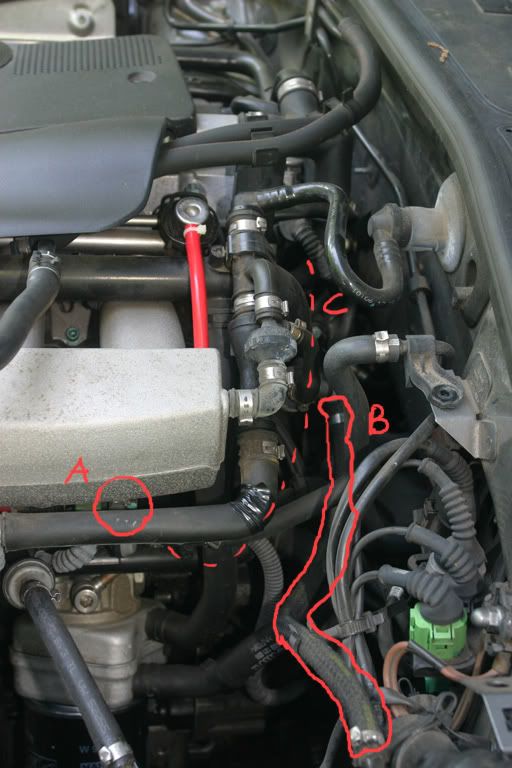

Here's a picture of the engine bay (AWM, coolant tank moved out of the way). According the ATW picture, there should be a braided vacuum hose runs as dotted line C does. But I can't find it. There's a bigger braided line B, but I'm sure it's not what I'm looking for. Also there's a short L-shaped rubber tubing at position A that is similar size as the vacuum hose and is hold by a similiar clamp. If there was a line like #3 on ATW, it must be connecting to this place. But that thing not connecting to anything else.:crazy:

AWM guys, any ideas? Please help me to find the damn line (if any). Thanks!:thumbup:



[tecra]

Thanks for the reply.
I don't recall that I saw braided line attached the canister. Let me climb onto the engine to take a picture. :lol:



[tecra]

Finally I found the line on my engine. However it's not braided one anymore. When my car was in for 60k maintenance service, my tech discovered a leak in that line and replaced the line for me. Now it's a black rubber kinda thing, not sure if it's as good as the silicon that I put on, but for now it's in good shape. Do I need to replace it? Debating.... :lol:

The line runs like this, form the check valve under the intake manifold between intake #3 and #4, to the silver canister behind the engine block.

Thanks D.passat00!



[tecra]

Yeah that's exactly what I found.
This is always a helpful place. Thanks everyone! :thumbup:



[tecra]

How do guys replace the line from somewhere under the intake to the diverter valve? Looks like it's really difficult to get access to it. Do I need to remove the throttle body? And How?
Thanks :thumbup:



[tecra]

So you unscrew three bolt and put it down a bit and replace the hose? Is there enough space if you leave the throttle body on?
I'm really afraid of the freaking hose clamps that vw put on. What a PITA to remove them! :banghead:
