Here’s a write up for taking the front door apart on a 2007 Passat 2.0T. I took the driver door apart, but I imagine the same steps would apply to working on the passenger door.
This write up is useful if you want to replace a window, door handle, door lock, door lock cylinder, window regulator, window regulator motor, subframe, … pretty much anything behind your door trim.

All right, here we go.



1. First remove the door trim. To do that you need to
a) pry up the handle cover – I used a butterknife
b) disconnect two electrical connectors



c) remove three T30 screws behind the door handle cover (red circles above), and two T20 screws at the bottom of the door panel trim (not shown)
d) Now you need to pull the trim off the door. There are six clips holding the trim to the door – 3 on each side. I used a butterknife to find them, and then I pulled the door trim off the door.

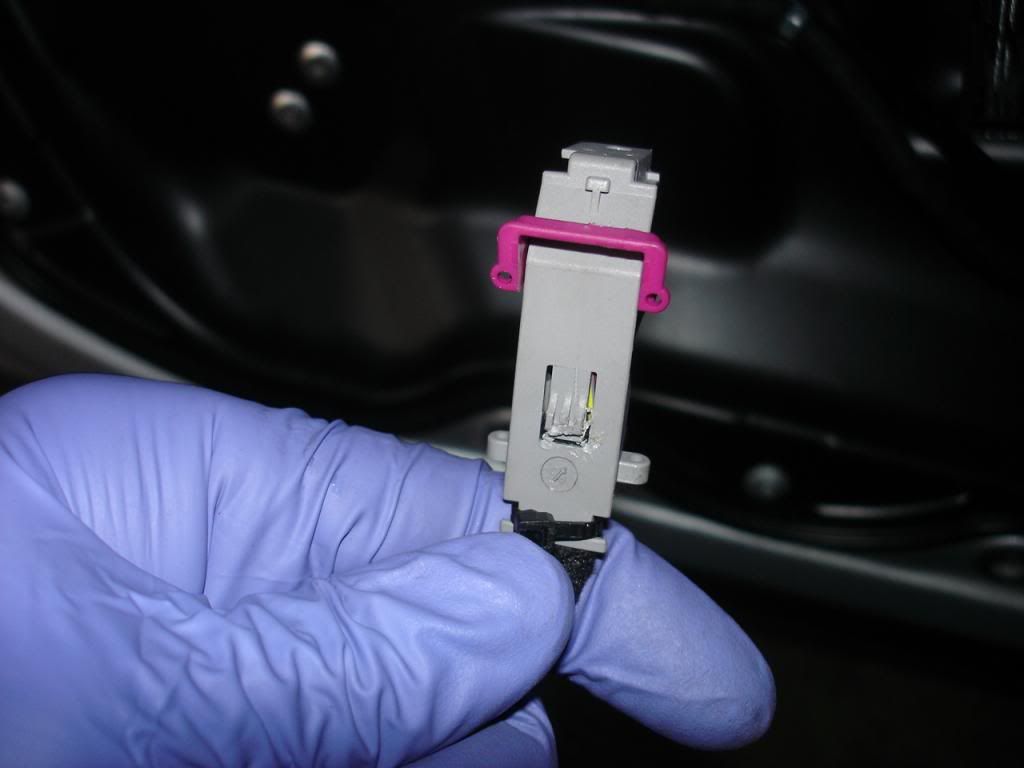

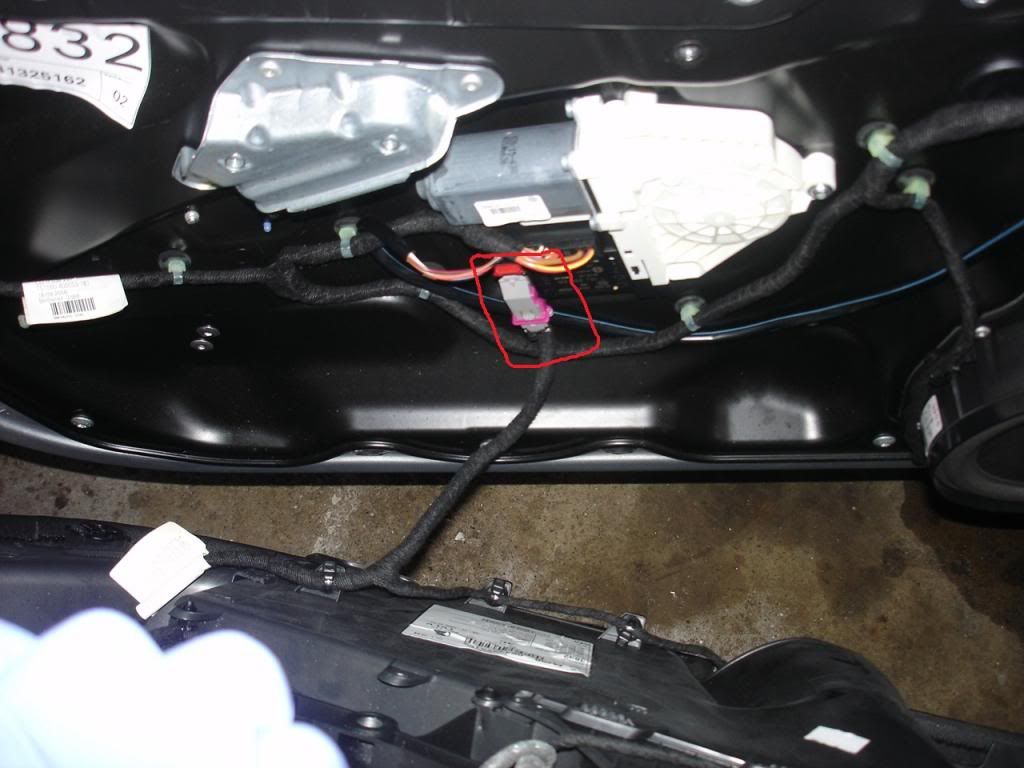

e) Disconnect the electrical connector circled in red above. To do it, just pry the purple clip up and it will come out.



f) Remove the door handle cable from the door handle. Be careful not to break the cable holding tabs as they are tiny.
g) The trim is now free and can be set aside.

2. Next, you need to remove the door handle and door lock cylinder.

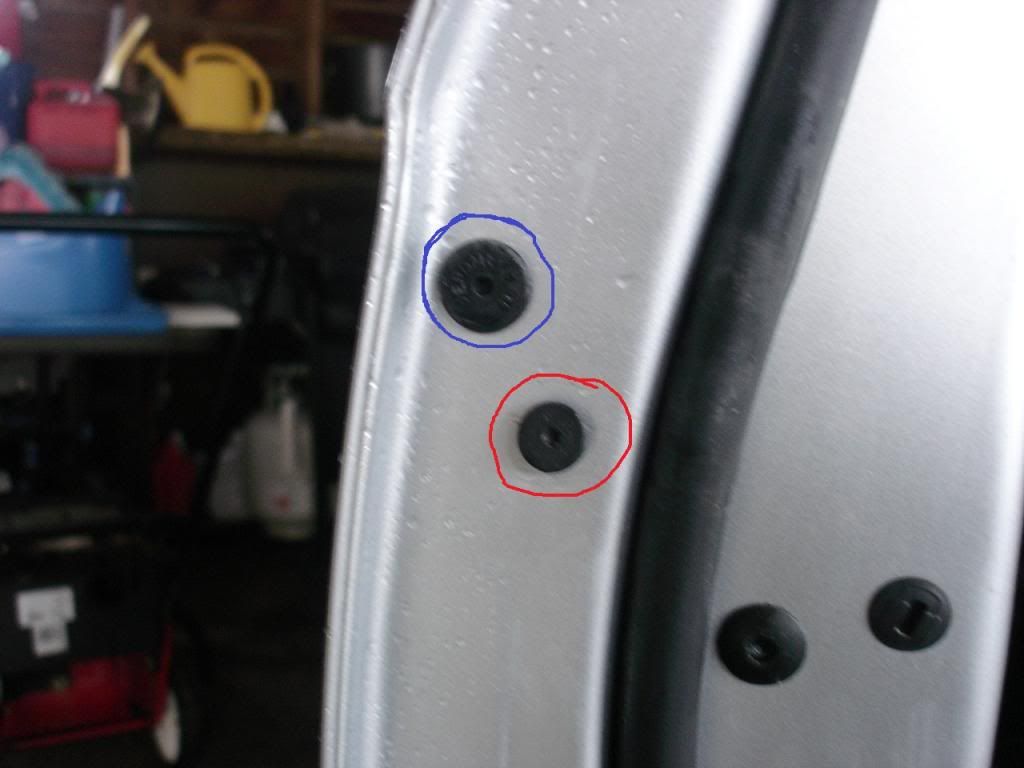

a) There are covercaps covering bolts circled in blue and red. Remove them.
b) Remove the bolt circled in RED (Torx T15) completely out. Read next very carefully.
c) Now go onto the bolt circled in BLUE (Torx T15). DO NOT REMOVE THIS BOLT COMPLETELY. Pull the door handle out and start loosening the bolt circled in blue. The door handle will be stuck in its pulled-out position once you turn that bolt loose a few turns, and DO NOT TRY TO PUSH IT IN.



d) Keep slowly loosening the bolt circled in blue, while at the same time trying to pull the lock cylinder out. You can turn the bolt loose one turn, and then try to pull the cylinder out. Keep doing it until you can pull the cylinder out. Now I’ll say it again: DO NOT REMOVE THE BOLT CIRCLED IN BLUE COMPLETELY. Loosen it just enough so you can get the cylinder out.
e) Once the cylinder’s out, you can remove the door handle. To do so, you need to
- Pull the door handle towards the rear of your car a little bit
- Then swivel it outside out of its bracket
- Remove it from the door

3. Once the door handle and lock cylinder are out you can begin removing the subframe.



a) Pull the cover caps circled in blue off.
b) Now you need to lower the window. To lower it you have to reconnect the electrical connector from your door trim back to the window regulator. Lower the window until you can see the screws (you need E5 socket – they are “socket torx” screw for the lack of a better term) holding the window brackets tight. THESE SCREWS HAVE LEFT HAND THREADS. If you don’t know what it means (not trying to offend anybody), to loosen them you need to turn them clockwise, and to tighten them you need to turn them counterclockwise. Exactly the opposite of how things should be.
c) Once the screws are loose you can remove the window. If you are replacing the window, you can pull it out of the door frame now. If your goal is something else, have some duct tape handy. Pull the window up and tape if to the door window frame so it doesn’t fall down.
d) On window regulator, disconnect the side mirror electrical connector (circled in red) and guide the cable free and away from the subframe (red lines).
e) Disconnect the electrical connector circled in orange, and pull the clip holding the cable to the door out (orange circle).





f) Now you need to disconnect the main electrical harness from the door to the car. If you look at the place where your door meets the car you’ll see a rubber “snorkel” or protective boot. At the car side, the boot has two tabs. The bottom one is fixed. The upper one can be pushed up. So push the upper tab up and pull off the boot on the car side.
g) Once the boot’s off, pull the harness connector lock (clip) down and disconnect the harness from the car.
h) Push the boot and main harness connector (circled in red) into the door.



i) Remove the door lock bolts (2 M6 bolts)



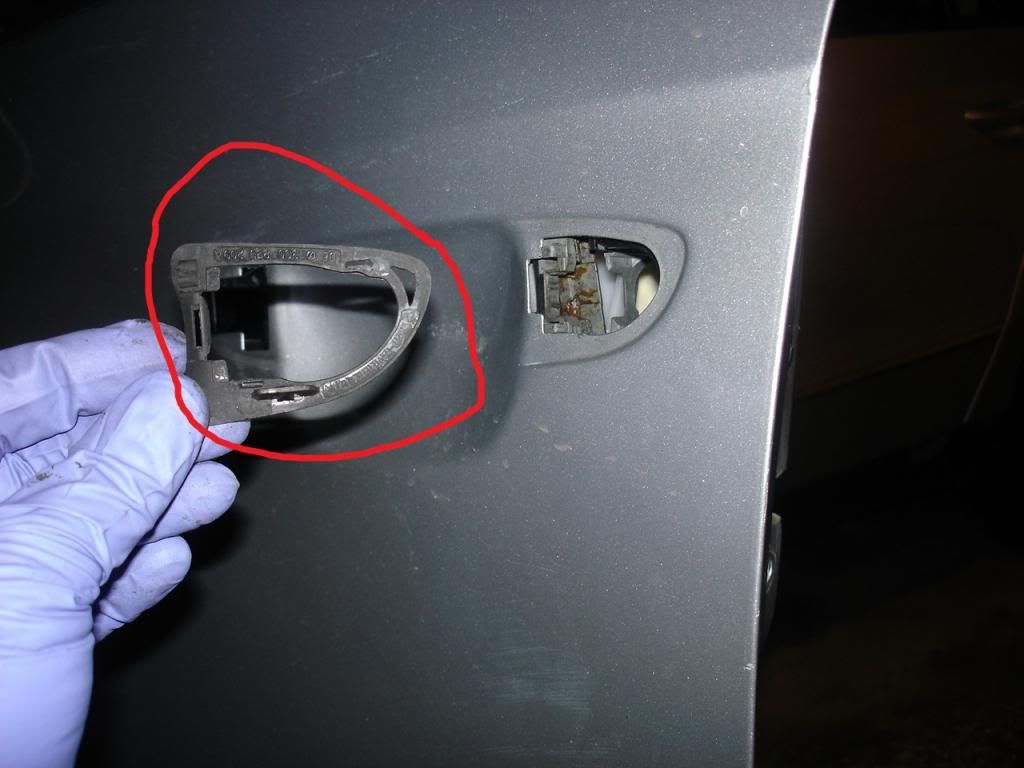

j) Remove screw circled in yellow (T20), and then pull of the door handle bracket “gasket” (red arrow). Pay attention to how it’s installed.

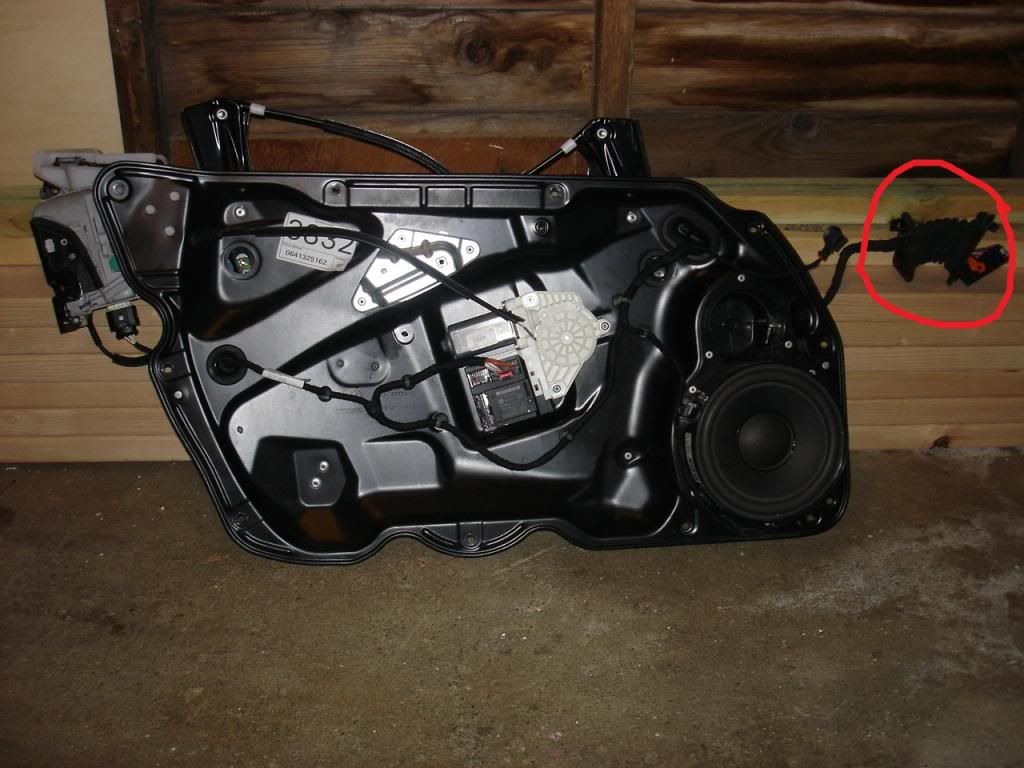

k) At this point you can remove all the bolts securing the subframe (subframe picture – yellow circles)



l) Make sure the door handle bracket is free from the door when you remove that “gasket” (red circle), and then pull the subframe up a little bit, tilt the bottom out, and pull it downwards out from the door frame.

Forgot to add that installation is reverse of removal. A couple points though:
1. When you guide the main harness through the door back out, make sure the door end is reseated right in the door frame. Then you bolt the subframe on. This way you don't find the harness being pulled into the door frame all of a sudden - which incidentally happened to me :)
2. Note about the main harness - it is held by a clip to the subframe so that it stays out of the window downpath. If you accidentally break that clip so the harness has a lot of play and is loose, make sure you tie it in some way to the subframe so it doesn't swing out in the window down path
3. When you're ready to put the window down, slide the window brackets down a little bit so that you can actually see and make sure the window sits in the window brackets. Then push on the window down a little bit to seat it fully in the brackets. Then, raise the window electronically so you can access the bracket screws. This way you'll make sure the window is fully seated in the brackets.
4. With the main harness disconnected do not turn the car on, as an airbag warning will pop up - airbag side crash sensor is diconnected. If you have a means of resetting it it's fine.

Any suggestions, comments, etc. are welcome.
Note, will take donations in BEER ONLY


·
Registered
Joined
·
226 Posts
Great post! Hope you've got the pictures hosted somewhere where they'll be available for the long haul. If I was closer to MI you'd get a beer for sure.


·
Registered
Joined
·
154 Posts
Discussion Starter #4
It is a 2007 2.0T FSI Sedan. I suppose the process would be the same for all B6 models, unless higher ups don't have additional controls on the door handle. Thanks for the question, I'll update the post.


·
Registered
Joined
·
2,407 Posts
I have had success using plastic kitchen tools, say a spatula or flipper, in place of the butterknife for prying off parts. The wider softer edge is a bit more forgiving on the trim.


·
Registered
Joined
·
6 Posts
Do you know of any way to "shorten" the cable for the handle to open up the door from the inside? My cable seems to be overextended because when it is hooked to the handle it has no tension and the door won't open from inside handle.


·
Registered
Joined
·
8 Posts

·
Registered
Joined
·
37 Posts
Great write up, thanks. The only thing I can add is that the "torx socket" screws that hold the window in place can also be loosened with a small 4mm socket. I attempted this very cautiously since I didn't have the proper socket and it worked fine. It would've been nice to have the trim remover tool also but still manageable.


·
Registered
Joined
·
4 Posts
Been trying to figure out a intermittent lock issue. This is a rad post for how to get into door and sub panel. Hard to find enough details to be helpful.


·
Registered
Joined
·
50 Posts
What's a "rad post"?
I think it's just shy of "totally awesome dude". :D

I just came back for a refresher before getting really disappointed. I used this to replace the passenger side actuator in my daughters car when I first bought it for her about 2 years ago. Today I went to replace the drivers side only to find the previous owner broke the tip off of one of the window mount adjusters. My guess is they didn't know it's left hand threaded. I'm pretty sure they had mentioned they'd replaced that one already, but neglected to tell me what all damage they did to both doors taking them apart not knowing what they were doing. :( At least the car runs like a bad out of hell....which isn't good for a high school kid, but fun for dad sometimes.

Off to a shop to let them tackle this one.


·
Registered
Joined
·
319 Posts
Great post. I'll be working on mi driver side this weekend. Thank you. I can donate some beers but you pay shipping. lol. Let me know.


·
Registered
Joined
·
1 Posts
It is a 2007 2.0T FSI Sedan. I suppose the process would be the same for all B6 models, unless higher ups don't have additional controls on the door handle. Thanks for the question, I'll update the post.
Great post, thanks, but my problem is the window is stuck down so i can't get to the screws to release the glass. I have removed the window motor, but still cannot move the glass. Any ideas please
